Pancake load cell FA120B 0.1t to 30t
Pancake load cell designed for test machine, truck weighing system, hopper scale and other industrial weighing system

DESCRIPTION


Summary


Pancake load cell designed for test machine, truck weighing system, hopper scale and other industrial weighing system



Application


test machine, truck weighing system, hopper scale and other industrial weighing system



Detail information


1.load cell 3D picture



2. load cell size and force direction

Picture3 (2).png

Capt

A

B

C

D

E

F

G

H

M

0.1,0.2,1,2,3,5

105

75

32

34

89

26.8

7.5

37

M16×1.5

10,15,20,25

120.6

83

39

41

101.8

30.5

8.5

53.5

M32×1.5

30

141

96.9

50.4

50.8

116.8

39.8

11

57.2

M40×1.5


3. load cell parameter


Specifications
Technique
Capacity
0.1-30t
Reted output
2.0±10%mV/V
Zero Balance
±1%F.S
Creep(30min)
≤0.03%F.S
Non-linearity
≤0.03%F.S
Hysteresis
≤0.03%F.S
Repeatability
≤0.03%F.S
Input impedance
780±10Ω
Output impedance
700±5Ω
Temp.effect on output
0.02%F.S./10 ℃
Temp.effect on zero 0.02%F.S./10
Insulation resistance
≥5000MΩ/100V(DC)
Recommended excitation
5~15V
Maximum excitation
20V
Compensated Temp Range
-10~40
Operating Temp Range
-10~70 ℃
Safe overload
150%F.S
Ultimate overload
200%F.S.
Cable size
φ5x6000mm

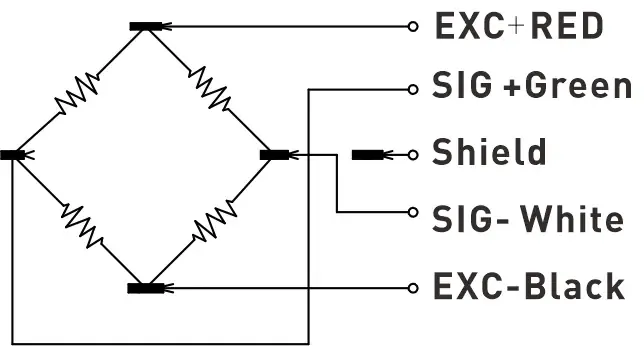

4.load cell wiring code
